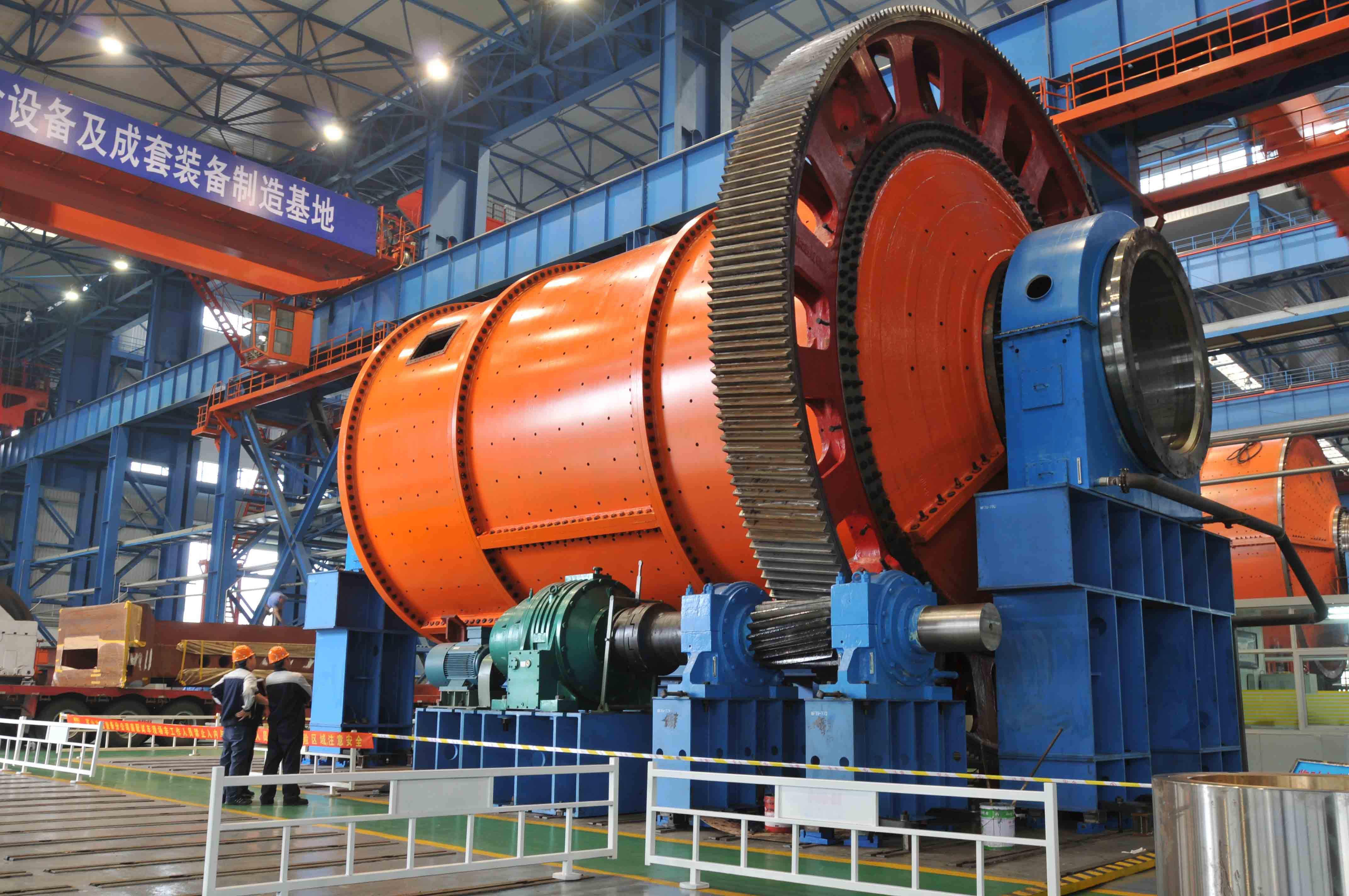

MQ球磨機
MQ Ball Mill
概述：該球磨機廣泛應用于金屬和非金屬礦山、建材等行業粉磨各種礦石和巖石，該磨機具有效率高、能耗低、壽命長的特點。
General Description:
Ball mill is widely used for grinding various ores or rocks in metal and non-metal mining as well as construction industry. It has the added advantages of high efficiency, low energy consumption and long equipment lifespan.
設備選型參數表
Equipment Specifications
MQS濕式格子型球磨機
MQS Wet Grid Ball Mill
|
型 號 Type |
MQS 2122 |
MQS 2130 |
MQS 2721 |
MQS 2727 |
MQS 2736 |
MQS 3230 |
MQS 3236 |
MQS 3245 |
MQS 3639 |
MQS 3645 |
|
|
筒體直徑Casing Dia. (mm) |
φ2100 |
φ2700 |
φ3200 |
φ3600 |
|||||||
|
筒體長度Casing Length (mm) |
2200 |
3000 |
2100 |
2700 |
3600 |
3000 |
3600 |
4500 |
3900 |
4500 |
|
|
旋轉方向 Rotating Direction |
Left or Right |
||||||||||
|
介質裝入量 Medium Weight (t) |
15 |
20 |
23 |
29 |
39 |
46 |
58 |
65 |
75 |
90 |
|
|
產量Output(t/h) |
按工藝條件定 Decided by process condition |
||||||||||
|
主電機Main Motor |
功率Power (Kw) |
155 |
210 |
260 |
310 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
轉速 Speed (rpm) |
730 |
735 |
735 |
735 |
187.5 |
167 |
167 |
167 |
167 |
150 |
|
|
電壓Voltage (V) |
380 |
380 |
3000 |
3000 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
|
機器外形尺寸 Overall Size |
長 L(mm) |
8000 |
8800 |
9280 |
9900 |
11900 |
13700 |
14300 |
16100 |
15100 |
15200 |
|
寬 W(mm) |
4700 |
4700 |
5500 |
5500 |
5700 |
6760 |
6760 |
6800 |
7200 |
7250 |
|
|
高 H(mm) |
4400 |
4400 |
4500 |
4400 |
7700 |
5100 |
5200 |
5200 |
6300 |
6300 |
|
MQY溢流型球磨機
MQY Overflow Ball Mill
|
型 號 Type |
MQY 2130 |
MQY 2136 |
MQY 2736 |
MQY 2740 |
MQY 3245 |
MQY 3254 |
MQY 3645 |
MQY 3650 |
MQY 3660 |
||
|
筒體直徑Casing Dia. (mm) |
φ2100 |
φ2700 |
φ3200 |
φ3600 |
|||||||
|
筒體長度Casing Length (mm) |
3000 |
3600 |
3600 |
4000 |
4500 |
5400 |
4500 |
5000 |
6000 |
||
|
旋轉方向 Rotating Direction |
Left or Right |
||||||||||
|
介質裝入量 Medium Weight (t) |
18 |
20 |
39 |
38 |
61 |
73 |
76 |
86 |
102 |
||
|
產量Output (t/h) |
按工藝條件定 Decided by process condition |
||||||||||
|
主電機Main Motor |
功率 Power (Kw) |
120 |
120 |
400 |
`400 |
630 |
1000 |
1000 |
1250 |
1250 |
|
|
轉速 Speed (rpm) |
735 |
735 |
187.5 |
187.5 |
167 |
167 |
167 |
150 |
150 |
||
|
電壓Voltage (V) |
380 |
380 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
||
|
機器外 形尺寸 Overall Size |
長 L (mm) |
8800 |
9300 |
11400 |
11850 |
14600 |
15800 |
15000 |
171570 |
17000 |
|
|
寬 W (mm) |
4700 |
4700 |
5700 |
5667 |
6700 |
6700 |
7200 |
7752 |
7700 |
||
|
高 H (mm) |
4400 |
4400 |
4500 |
4496 |
5200 |
5100 |
6300 |
6326 |
6300 |
||
